Purification Color Steel Panel

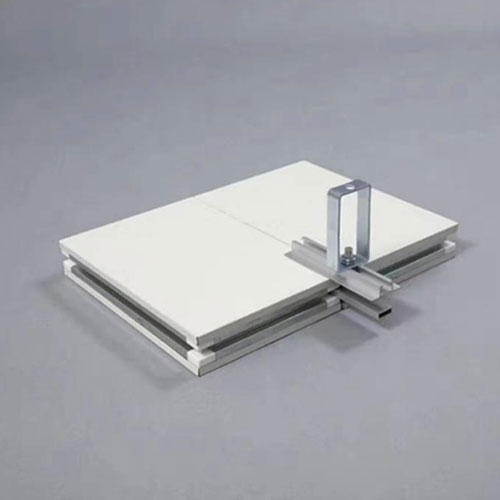

Purification Color Steel Panels offer comprehensive performance, including fire resistance, flame retardancy, sound insulation, noise reduction, and thermal insulation, making them highly versatile and capable of fully meeting diverse cleanroom construction needs, such as workshop partitions, cleanroom ceilings, door and window framing, and equipment enclosures.

What is Purification Color Steel Panel?

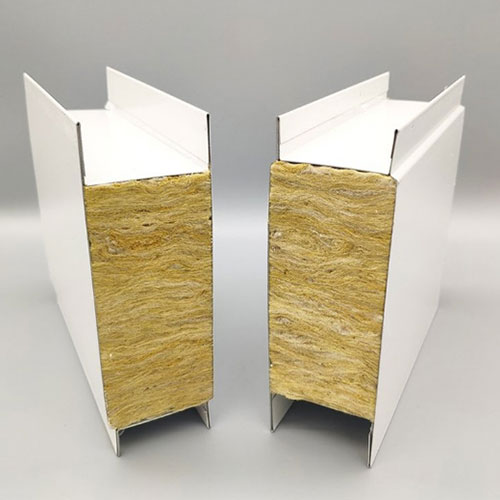

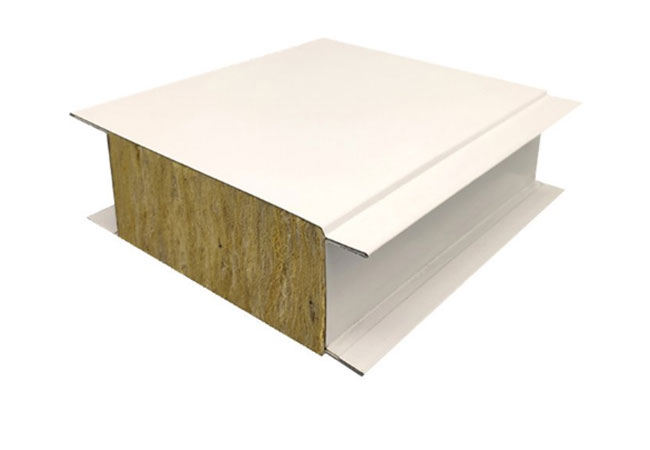

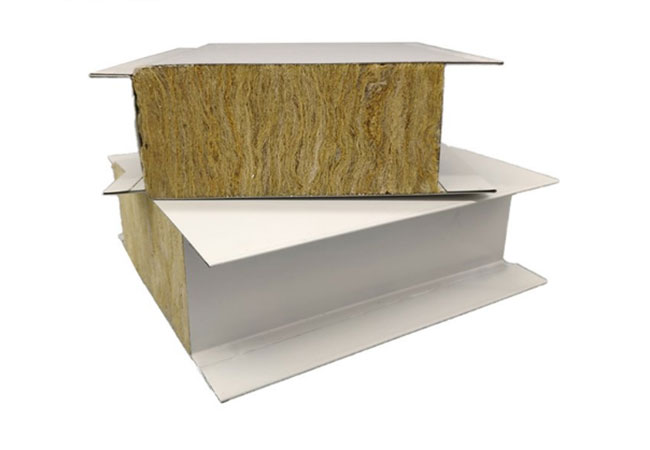

Purification color steel panel is a panel for purification projects made by color-coated steel panels as the surface layer and flame-retardant core materials as the filling layer through special composite equipment.

The difference from ordinary color steel panels is: our panels use flame-retardant materials with higher closed-cell rate as the core, the panel surface coating is dust-proof treated, and the splicing structure uses sealed tongue-and-groove design instead of ordinary wave plate overlap.

The panels are currently the most widely used panel type in the purification engineering field.

Surface Coating Technology

The surface coating of purification color steel panels directly affects durability and application range:

- PE Polyester Coating: Economic option, weather resistance approximately 5 – 8 years, suitable for general industrial workshop interior partitions.

- SMP Silicone Modified Polyester Coating: Weather resistance improved to 10 – 12 years, suitable for food packaging workshops with certain environmental requirements.

- HDP High Durability Polyester Coating: Weather resistance over 15 years, with better scratch resistance than the above options, recommended for production areas requiring frequent cleaning.

- PVDF Fluorocarbon Coating: High-end option, weather resistance over 20 years, with excellent chemical corrosion resistance and UV resistance, suitable for pharmaceutical and biological workshops.

It is recommended to consider coating grade selection based on workshop cleaning frequency, disinfection methods and budget. Jiesen can provide samples of different coatings for comparison.

Important Technical Parameters

Surface Steel Plate: Hot-dip galvanized substrate, zinc coating weight ≥ 80g/m² (both sides)

Coating Structure: Primer 5 – 8μm + Topcoat 15 – 20μm + Backcoat 5 – 8μm

Core Material Combustion Class: Class A (rock wool) / Class B1 (PU modified)

Flexural Bearing Capacity: ≥ 1.5kN/m² at 50mm thickness (support span 3m)

Fire Resistance Limit: Rock wool core 50mm thickness ≥ 1 hour

Panel Flatness: ≤ 1.5mm / 2m

Comparison with Other Purification Panels

Gypsum Board Partitions: Fast construction but requires plastering or tiling on the surface, not suitable for spaces with cleanliness requirements. Purification color steel panels come with a smooth surface from the factory, requiring no secondary decoration.

Stainless Steel Partitions: Corrosion resistance better than color steel panels, but cost is approximately 2 – 3 times higher and heavier. For conventional workshops not involving strong acids and alkalis, color steel panels provide sufficient corrosion resistance.

Magnesium Oxide Board Partitions: Fire rating can also reach Class A, but high density and heavy weight require reinforced keels for ceiling use. Color steel panels are lighter (approximately 10 – 15kg/m²), with less load on building structures.

Packaging & Shipping Instructions

Standard specification panels are packed flat, with foam strip spacers between each pallet, wrapped with stretch film and fixed with steel straps.

Non-standard sizes are packed in wooden crates or steel frames according to order requirements. Standard stock specifications (50mm thickness, 950mm width) can be shipped within 48 hours.

Special specifications (non-standard width, special-shaped panels) require 5 – 7 working days production cycle. Within-province logistics arrive next day; out-of-province 3 – 5 days; remote areas require specific transit time calculation.

Custom Process Instructions

Customization parameters for purification color steel panels include:

- Steel Plate Thickness: 0.4 / 0.5 / 0.6 / 0.8mm (optional)

- Panel Color: Approximately 200 RAL color options available

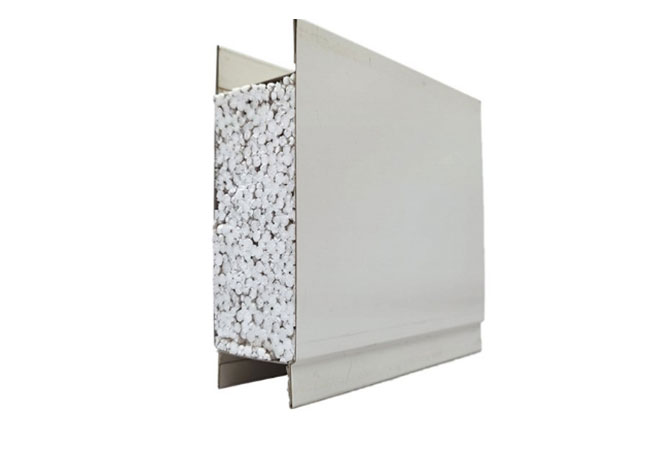

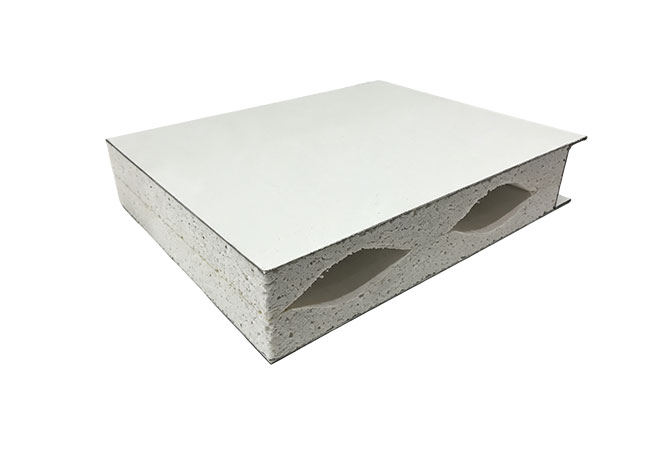

- Core Material Type: Rock wool / PU / Magnesium oxide / Silica (optional)

- Panel Width: Adjustable by 50mm module within 950 – 1150mm range

- Panel Length: Up to 12m according to project requirements, but transport conditions must be considered beyond 6m

Definition

The significance of purification color steel panels can be summarized in one sentence: using the most mature process, the lowest comprehensive cost and the shortest construction cycle to build a production workshop that can pass routine clean acceptance. Its core mission is not to achieve ultimate cleanliness (that is the task of handmade boards and medical boards), but to ensure that the walls and ceilings of most industrial clean workshops meet standards within a controllable cost range.

Different Coating Performance Comparison

FAQ

Q1: What is the difference between purification color steel panel and ordinary color steel panel?

A1: The main differences are: purification color steel panels use flame-retardant materials with higher closed-cell rate as the core, the panel surface coating is dust-proof treated, and the splicing structure uses sealed tongue-and-groove design instead of ordinary wave plate overlap. They are designed for clean workshop environments.

Q2: What coating type is suitable for food workshops?

A2: For food workshops, SMP silicone modified polyester coating or HDP high durability polyester coating is recommended. Both meet food industry cleaning and disinfection requirements, with HDP providing better scratch resistance for frequent cleaning.
