Our Product Series

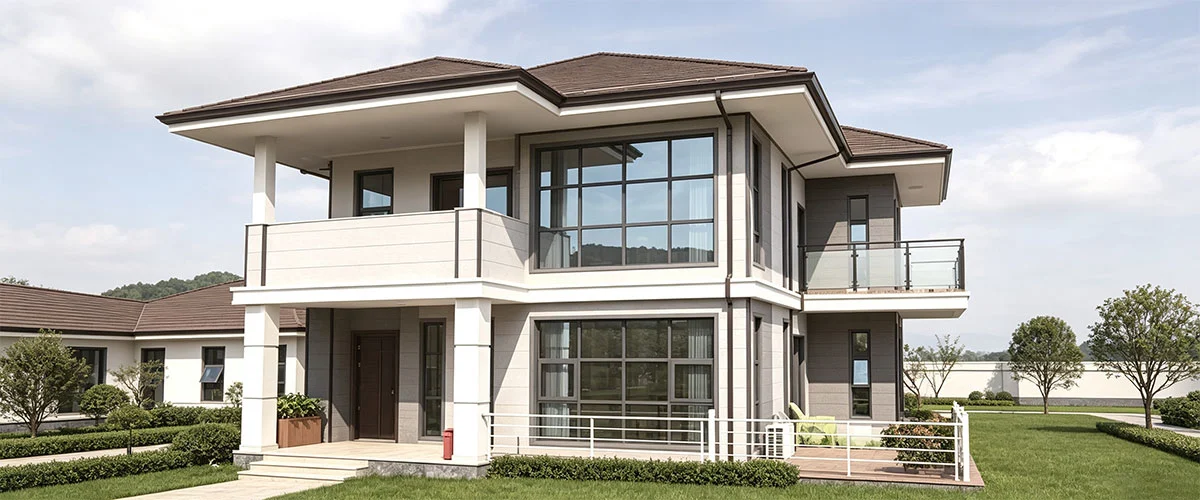

Metal-Carved Thermal Insulation Composite Panels

Features

1. High-Quality, Stable Raw Materials

The surface layer utilizes imported Al-Zn alloy steel paired with high-weather-resistance fluorocarbon coatings (from AkzoNobel/Netherlands or KCC/South Korea); it is salt-spray and UV resistant, ensuring no fading or peeling during 30 years of outdoor use.

The core material consists of high-density flame-retardant polyurethane foam with a thermal conductivity as low as 0.022 W/(m·K), offering outstanding thermal insulation and soundproofing performance.

The bottom layer features waterproof aluminum foil to block moisture and prevent wall condensation or mold. The panels weigh only 8–12 kg/m², adding minimal load to the building structure, and offer a service life of over 40 years under normal conditions—far exceeding traditional exterior materials like ceramic tiles or "real stone" paint.

2. Integrated Thermal Insulation and Decoration

Combines thermal insulation, waterproofing, decoration, soundproofing, and fire resistance. Features dry-method modular assembly requiring no complex wall substrate preparation; construction efficiency increases by over 60% (two workers can install 200 m² per day). The total cost is only one-third that of stone curtain walls, while long-term energy consumption for heating and air conditioning is reduced by 30%.

3. Diverse Styles and Patterns

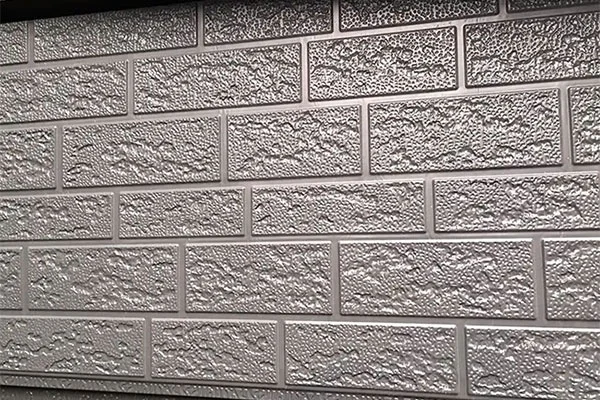

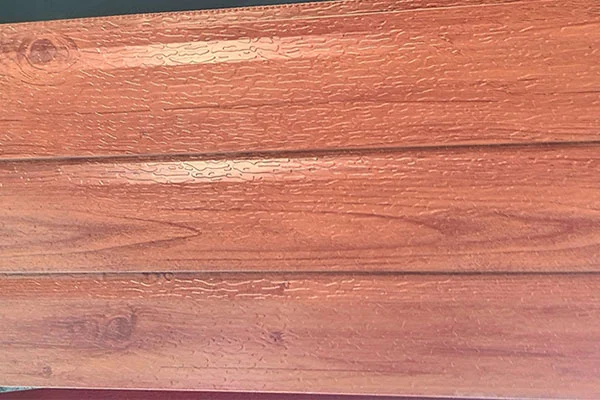

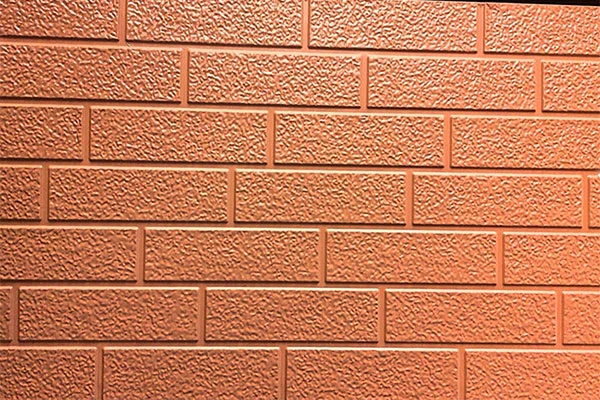

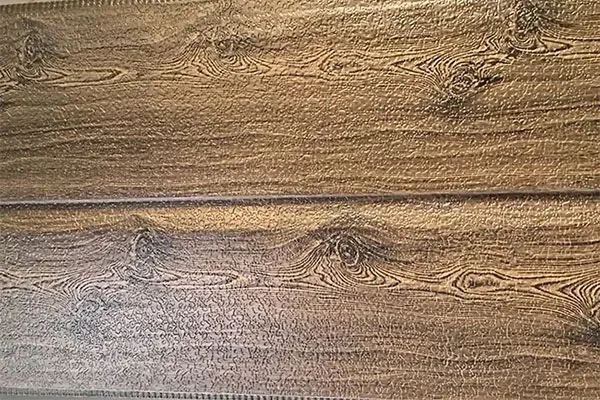

Over a hundred factory-developed embossed textures are available, covering finishes such as imitation red brick, marble, wood grain, and sandstone. Hundreds of solid and dual-tone coating options exist, with customization available for panel thickness, length, color, and texture.

4. Safe, Eco-friendly, and Low-Maintenance

The core material meets the B1-grade flame-retardant standard; the product is formaldehyde-free, free from radioactive pollution, and classified as a green, recyclable building material.

Features an interlocking slot structure that ensures a sealed, leak-proof fit. It is resistant to freeze-thaw cycles and wind pressure, making it suitable for climates ranging from freezing winters to scorching summers. The surface is smooth and dust-resistant, offering self-cleaning capabilities against everyday rainfall; it requires no periodic refinishing or painting and entails virtually zero long-term maintenance costs, effectively avoiding common issues associated with traditional exterior walls such as cracking, water seepage, and material detachment.

Features

1. Comprehensive Core Material Options

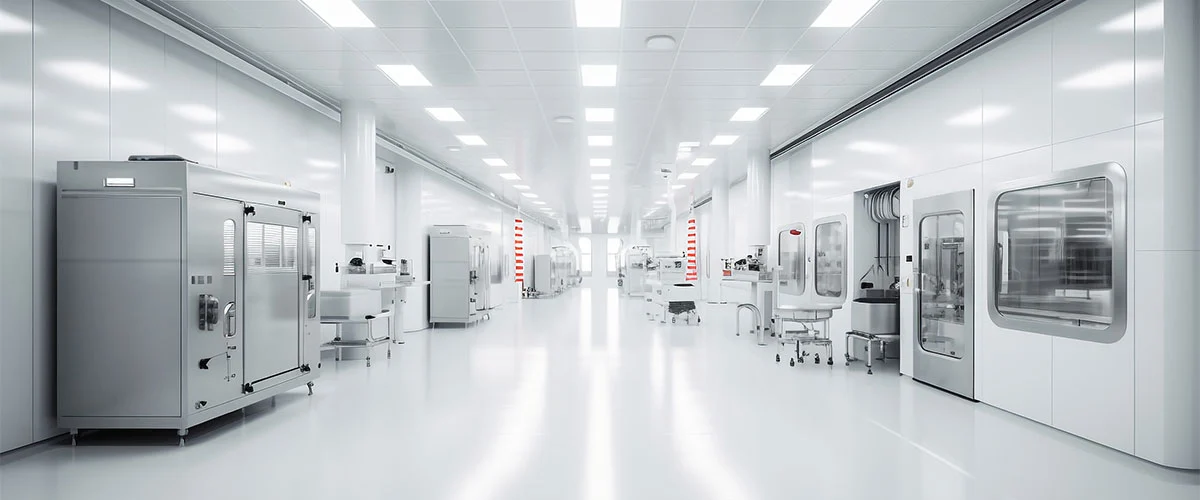

The company offers a complete product line of cleanroom panels, covering mainstream high-end, mid-range, and general-purpose categories. Customization is available based on specific cleanroom class requirements, fire safety standards, budget, and application scenarios:

Rock Wool Cleanroom Panels (Class A Non-combustible): High fire resistance and excellent sound insulation; non-shedding and high strength; suitable for pharmaceutical GMP workshops, laboratories, fire-rated zones, and high-grade cleanroom facilities.
Magnesium Oxysulfate / Hollow Glass-Magnesium Cleanroom Panels (Class A Fire-rated): Moisture-resistant, immune to "halide reversion" (surface sweating/corrosion), dimensionally stable, and durable in humid environments; ideal for food processing workshops, wash/decontamination areas, and ceilings or walls in high-humidity facilities.
Silicon-Rock Cleanroom Panels (Class A Lightweight): Cost-effective, highly stable, and offering excellent cleanliness performance; widely used for large-scale partition walls and ceilings in electronics workshops, packaging workshops, and standard cleanroom facilities.
Aluminum Honeycomb Cleanroom Panels (High-end): Exceptional flatness, anti-static properties, high strength, and non-dust-generating; suitable for operating rooms, precision laboratories, semiconductor facilities, and high-end scientific research clean spaces.
EPS/Polyurethane Cleanroom Panels: Lightweight, thermally insulating, and low-cost; suitable for changing rooms, corridors, and auxiliary areas with lower cleanliness requirements.

2. Comprehensive Manufacturing Processes

Available in two main manufacturing types: machine-made and hand-made cleanroom panels:

Machine-made Panels: Formed via fully automated production lines with interlocking tongue-and-groove joints; offers rapid installation and high cost-effectiveness; suitable for large-area walls in standard cleanroom workshops.
Handmade Panels: Featuring galvanized steel edge banding on all four sides and integral reinforcement, these panels offer excellent sealing properties and resist deformation or cracking; they are the preferred choice for high-cleanliness workshops, ceiling systems, and fire-rated compartmentalization.

Panel options include color-coated steel or 304 stainless steel; the surfaces are dense and non-porous, dust-free, and resistant to disinfectant cleaning, ensuring long-term adherence to workshop cleanliness standards.

3. Key Performance Advantages

Cleanliness & Dust Resistance: Smooth, seamless surfaces with self-cleaning and dust-resistant properties; no powder shedding or dust-trapping corners during long-term use, meeting cleanliness requirements ranging from Class 100,000 to Class 100.
Safety & Fire Resistance: Available with rock wool, magnesium oxide (glass-magnesium), or silicon-modified rock wool cores—all rated Class A non-combustible—offering high fire resistance and compliance with fire safety inspection standards.
Eco-friendly: Formaldehyde-free, odorless, and pollution-free; passes environmental testing and is ready for immediate installation and use.
Superior Sealing: Utilizes specialized aluminum profiles for cleanrooms, radiused corners, and sealant treatments to eliminate dust-trapping corners and prevent air leakage or loss of cleanroom air pressure.
Weather & Corrosion Resistance: Resistant to acids, alkalis, and disinfectant corrosion; anti-aging properties make them suitable for demanding environments in medical, food processing, chemical, and electronics industries.
