Dust-free Wall Panel

Dust-free Wall Panels undergo deep processing using a proprietary dust-free curing process and are treated to be antimicrobial and dust-resistant, resulting in a smooth, easy-to-clean surface.

They feature a stable structure and robust composition, offering resistance to abrasion and minor impacts, making them well-suited for the daily operational environments of manufacturing facilities.

What is Dust-Free Wall Panel?

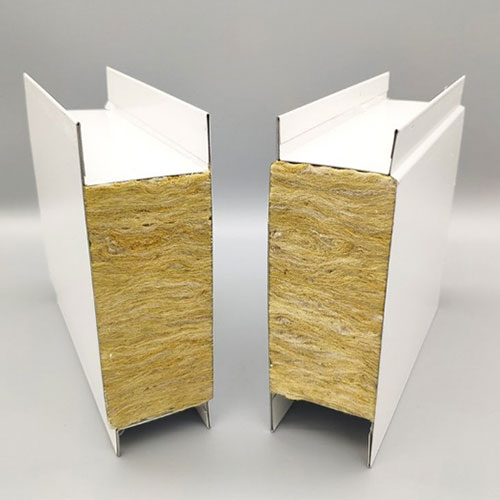

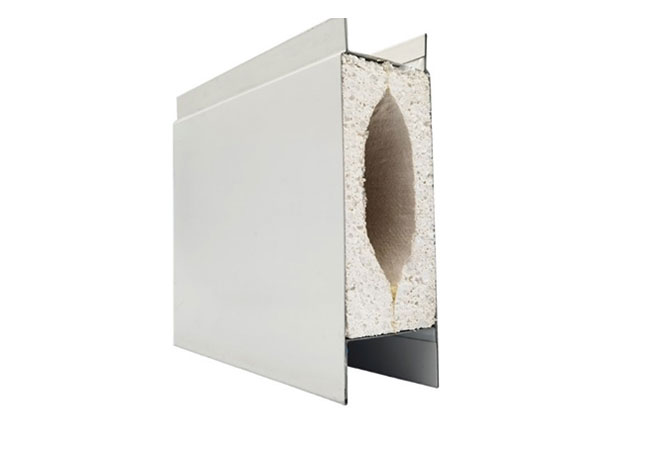

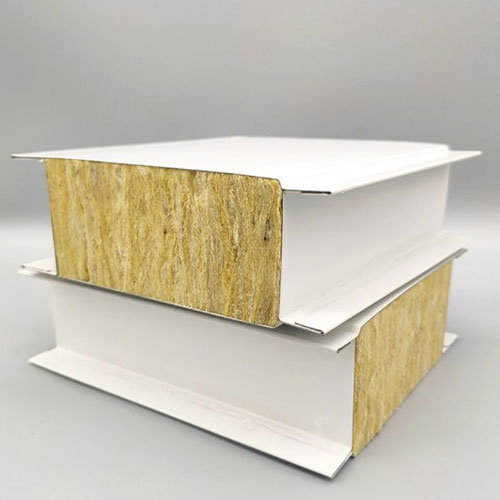

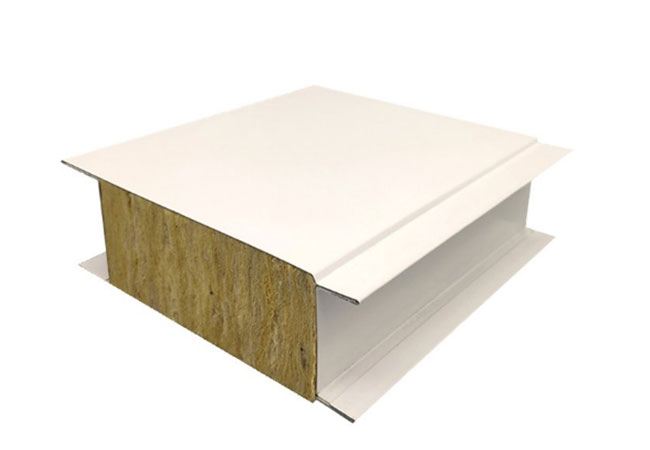

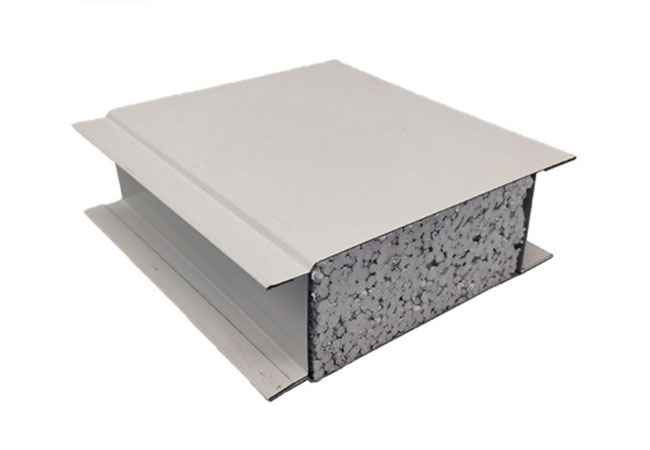

Dust-free wall panel is a wall panel specially designed for work spaces requiring control of airborne particle count. It uses steel plates with specially cured surfaces combined with high-density core materials.

The panel itself does not generate dust particles, nor does it adsorb airborne micro-dust.

The biggest difference between dust-free wall panels and ordinary wall panels is: ordinary wall panels experience surface aging and powdering during long-term use, while the coating process of dust-free panels ensures no dust generation or powdering throughout the entire lifecycle.

Dust-Free Wall Panel System Supporting Instructions

The complete wall system of dust-free wall panels includes not only the panels themselves, but also supporting aluminum alloy trim pieces, internal and external corner pieces, sealing strips and floor bottom channels.

- Special arc corner pieces are used at corners to completely eliminate dust-collecting dead corners.

- Sealed bottom channels with sealant are used at the connection between panels and the floor, eliminating dust accumulation at baseboards.

- Elastic seals are configured at the connection between panels and the ceiling, adapting to slight building settlement without compromising sealing.

After installation, it is recommended to apply secondary silicone sealant treatment to all joints to further improve airtightness.

The airtightness test of the overall wall system can achieve air change rate ≤ 2 times/hour (under standard pressure difference), meeting the basic sealing requirements of pharmaceutical GMP workshops.

Core Advantages

1. Dust Control from the Source: Unlike traditional walls that may generate dust from later plastering and spraying, dust-free wall panels leave the factory with a complete protective layer, requiring no on-site secondary coating.

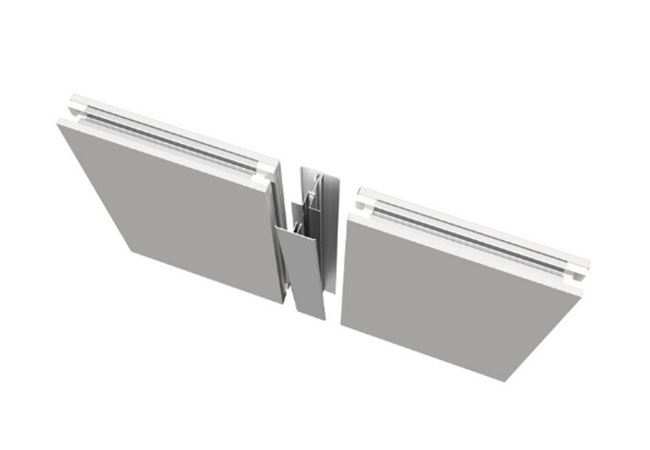

2. Sealed Connection: Male-female groove connection with elastic rubber strips creates a physical seal between panels, preventing airborne particles from passing through panel joints.

3. Disinfection Resistant: The panel coating can withstand daily alcohol and quaternary ammonium disinfectant wiping multiple times a day without fading or losing gloss over long-term use.

Applicable Industries & Places

Electronic Component Workshops — Production environments for static-sensitive devices such as resistors and capacitors

Precision Instrument Assembly Rooms — Production lines susceptible to particle contamination such as optical lenses and sensors

Food Packaging Workshops — Internal packaging workshops requiring protection of packaging film from dust contamination

Pharmaceutical Raw Material Weighing Rooms — Isolation enclosures for dust-generating processes

Cosmetics Filling Workshops — Wall enclosures for high-cleanliness filling environments

After-Sales Service Guarantee

Jiesen Building Materials provides a quality guarantee certificate for each batch of delivered panels. Within 12 months from the date of acceptance, free replacement is provided for panel cracking, delamination or rust caused by manufacturing process issues.

For quality issues not caused by human factors, contact after-sales personnel for coordination within 7 working days after delivery. Regular engineering projects include one free on-site installation guidance; remote video guidance is available for remote areas.

Packaging & Transportation Instructions

Panels are packaged in vertical A-frame racks, with 30 – 50 panels per rack. Pearl cotton spacers are placed between panels to prevent surface scratches. Thick paper corner protectors are used at the top, bottom and edges of each package.

A 20-foot standard container can hold approximately 1200 – 1500m² of panels (depending on thickness specifications). Export packaging includes waterproof stretch film on the outside, with additional binding straps inside the container to prevent movement and impact during sea transportation.

Dust-Free Wall Panel vs. Ordinary Metal Wall Panel

FAQ

Q1: What is the difference between dust-free wall panel and clean sandwich panel?

A1: Dust-free wall panels focus more on surface dust-free performance and sealing, with specially cured surfaces that do not generate dust. Clean sandwich panels focus more on structural strength and overall composite performance. They are more suitable for high-cleanliness workshops with strict dust control requirements.

Q2: How to maintain dust-free wall panels in daily use?

A2: Daily cleaning with clean water or neutral detergent is sufficient. For workshops requiring disinfection, alcohol or quaternary ammonium disinfectants can be used for wiping, which will not damage the coating. Avoid using acidic or alkaline cleaners.
