Medical Clean Board

Medical Clean Board features a specialized, long-lasting antimicrobial formula; it withstands frequent disinfection and resists corrosion, making it ideal for daily sanitization in medical settings.

The product is formaldehyde-free, odorless, and eco-friendly; it emits no harmful substances and does not compromise indoor air quality in medical facilities.

Definition of Medical Clean Board

Medical clean board is a high-standard purification panel designed and manufactured in accordance with the technical specifications for hospital clean operating rooms.

Compared with ordinary purification panels, medical clean boards have higher standards in antibacterial performance, surface corrosion resistance, fire rating and joint airtightness.

The board surface is treated with a special antibacterial coating to inhibit the survival and reproduction of common hospital infection bacteria such as Staphylococcus aureus and Escherichia coli.

Medical Area Configuration Classification

Medical clean spaces can be configured by functional areas:

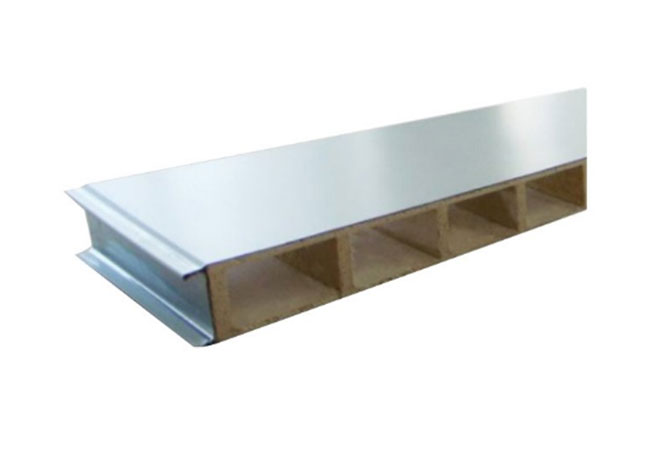

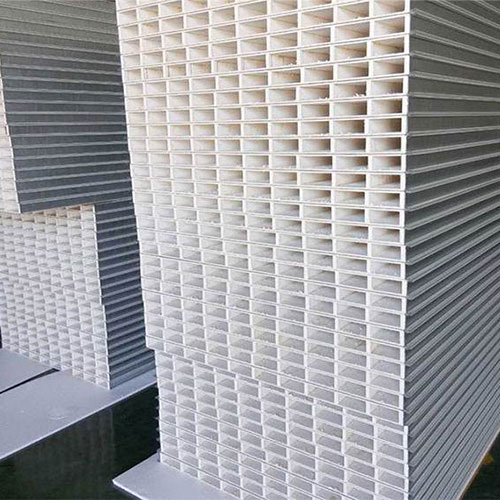

- Operating room areas: Handmade tongue-and-groove boards with magnesium oxide core material are recommended, with antibacterial coated steel plate surface, thickness 50mm, meeting the airtightness requirements of positive pressure operating room environments.

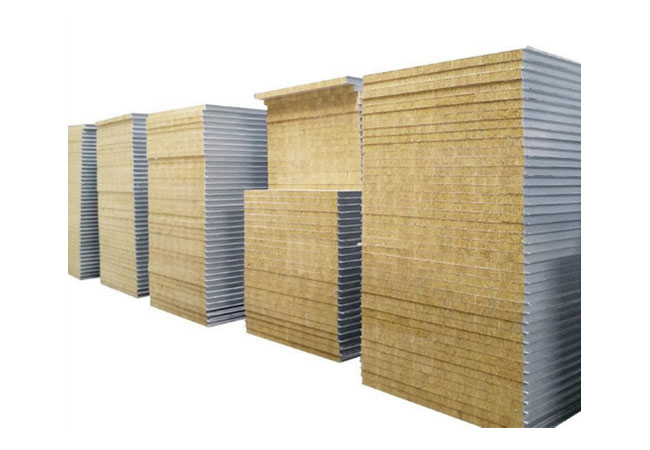

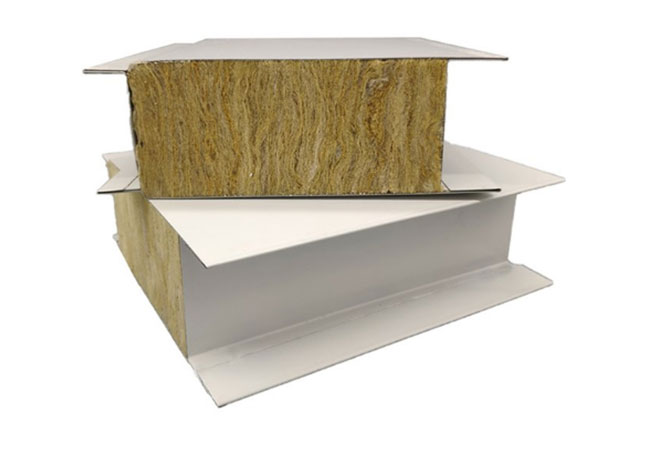

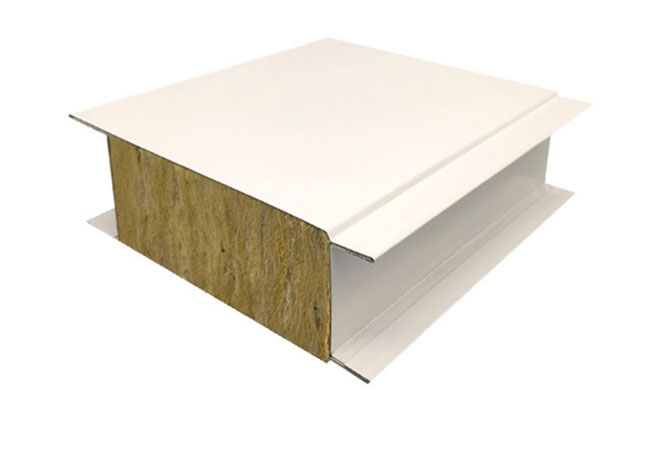

- ICU wards: Machine-made boards with rock wool core material are optional, balancing sound insulation and fire performance. 50mm thickness meets basic insulation and isolation requirements.

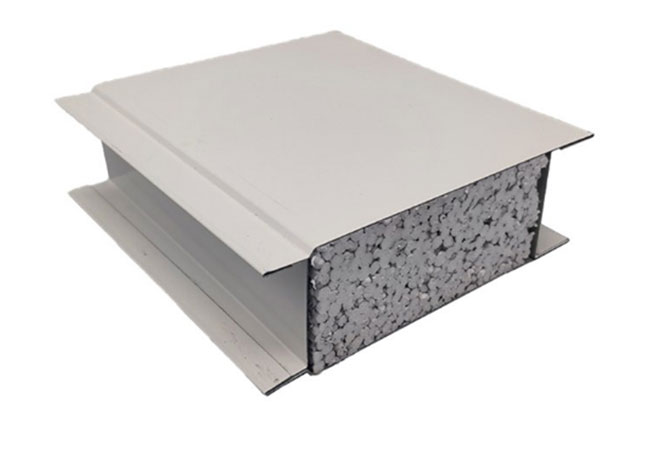

- General ward corridors: Standard color-coated steel panels with silica core material, moderate cost, neat and easy-to-clean surface.

- Laboratory areas: Stainless steel panels with magnesium oxide core material are recommended, resisting chemical reagent splashes with better corrosion resistance than ordinary color-coated panels.

For pharmaceutical GMP workshops, special attention should be paid to the sealing treatment of panel joints. It is recommended to apply arc sealing finishes to all joints and through-wall pipe openings.

Core Advantages

1. Antibacterial Coating: Silver-carrying inorganic antibacterial agents are incorporated into the coating system, with antibacterial activity value ≥ 2.0 (according to JIS Z 2801 standard). Unlike organic antibacterial agents, inorganic antibacterial agents do not lose effectiveness due to UV irradiation or high temperature, maintaining antibacterial effects throughout the board's lifecycle.

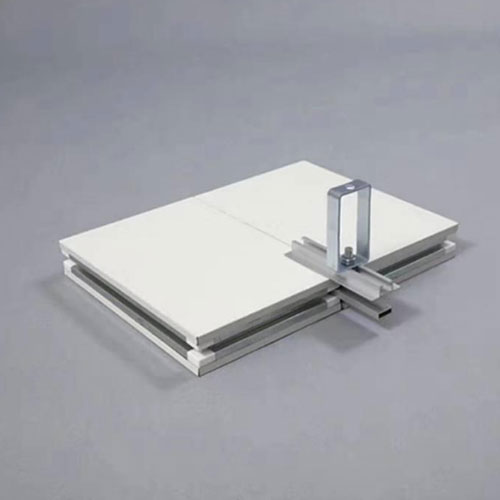

2. Seamless Splicing System: Handmade boards are equipped with aluminum alloy keel in the middle, with stepped edge sealing structures on all four sides. After splicing, board flatness achieves an error of no more than 2mm per 2 meters.

3. Radiation Protection Option: For areas with X-ray and CT equipment, custom lead-laminated clean boards can be provided, with lead equivalent configured at 1 – 3mmPb, meeting radiology department protection requirements.

Medical Area Panel Configuration Recommendations

Common Medical Application Places

- General hospital inpatient department ward corridors and wall skirts

- Dental clinic treatment room partition walls and ceilings

- Pharmaceutical enterprise solid preparation workshop clean corridors

- Medical consumables manufacturing enterprise Class 100,000 clean workshops

- Veterinary hospital operating rooms and laboratories wall-ceiling integrated decoration

Samples & Testing Support

Jiesen Building Materials can provide the following:

- ISO9001 certification (electronic version or copy)

- SGS third-party environmental test report (including formaldehyde emission, heavy metal content and TVOC emission tests)

- Panel samples (200mm × 300mm size, multiple colors available)

Sample shipping costs are borne by our company; return freight can be paid upon delivery. Bulk product quality is consistent with samples. If color difference or quality differences are found upon receiving bulk goods, a written objection may be raised within 7 days.

FAQ

Q1: What is the approximate price difference between medical clean board and ordinary purification board?

A1: Due to differences in antibacterial coating and sealing technology, the unit price of medical clean boards is typically about 15% – 25% higher than ordinary color-coated steel panels of the same specifications. However, considering its direct guarantee for medical acceptance, the cost-performance ratio is reasonable.

Q2: Can the board be installed directly on existing old walls?

A2: It depends on the condition of the old wall surface — when the substrate is flat, firm and dry, bonding and anchoring installation can be used directly. If the old wall has peeling, hollowing or severe unevenness, it is recommended to treat the substrate first or adopt a keel dry-hanging solution.
