Finished Insulation Decorative Board

Jason Building Materials is a professional manufacturer utilizing fully automated CNC production lines to produce finished insulation decorative boards. The products feature an integrated composite structure subjected to multiple curing treatments, incorporating a high-density, solid insulation core that provides sound insulation, moisture resistance, and shock absorption.

What is Finished Insulation Decorative Board?

Finished insulation decorative board refers to exterior wall panels that have completed all processing procedures before leaving the factory.

It is not just a composite of insulation layer + decorative surface — it also includes four-edge sealing, edge protection coating, pre-drilled holes and a series of detailed processing.

On-site construction workers do not need to perform any secondary processing (cutting, drilling, edge coating) on the panels.

They only need to install and fix the panels according to the positions on the drawings. This "finished product from the factory" model greatly reduces on-site construction complexity and quality instability factors.

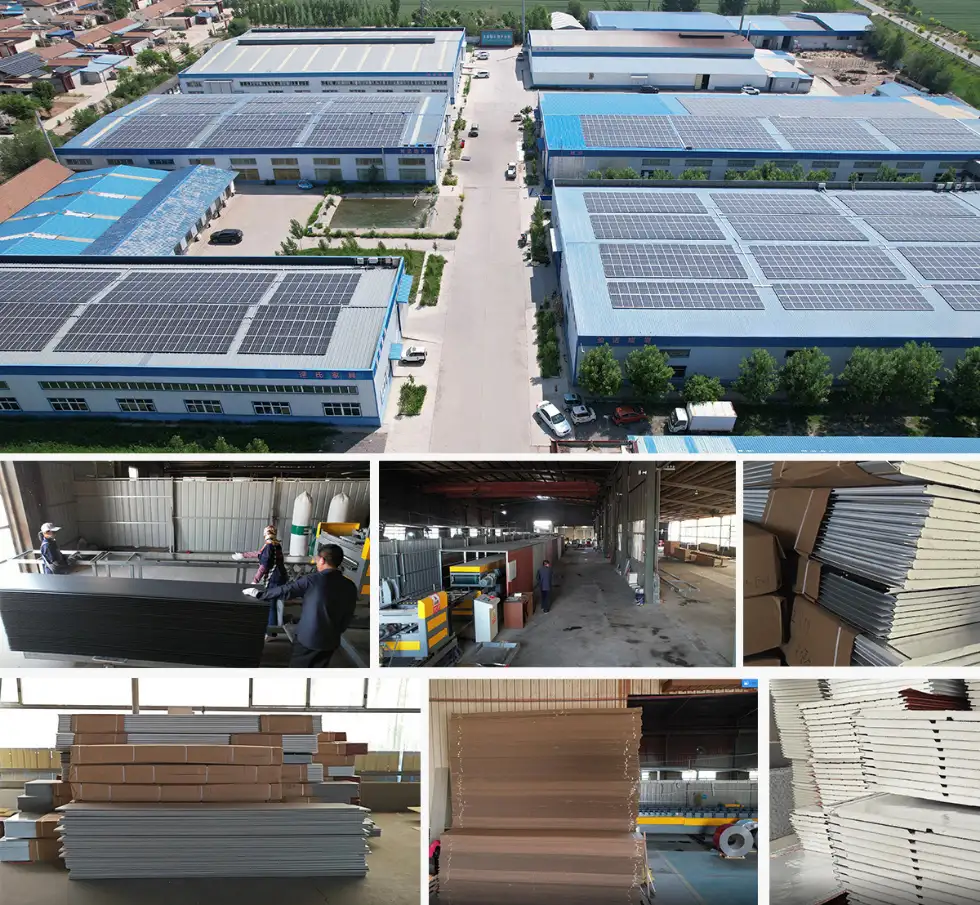

Factory Prefabrication Process & Quality Control

Standardized prefabrication process for finished insulation decorative boards:

Step 1 — Substrate Pre-Inspection: Incoming insulation core material is inspected for density, thickness and moisture content. Raw materials with deviation exceeding standard are not allowed for production.

Step 2 — Adhesive Application & Lamination: Polyurethane adhesive is evenly applied on both sides of the insulation core, with adhesive layer thickness controlled at 0.3 – 0.5mm.

Step 3 — High-Pressure Molding: Pressurized in a flat plate press at 0.5 – 1.0MPa, temperature controlled at 40 – 60°C, holding time not less than 30 minutes.

Step 4 — Surface Coating: Fluorocarbon or polyurethane paint is sprayed on the laminated substrate, with coating thickness controlled at 30 – 80μm according to design requirements.

Step 5 — Finished Product Inspection & Packaging: Inspect panel appearance, coating adhesion and dimensional deviation. Cover with protective film and store in warehouse after passing inspection.

The core advantage of factory prefabrication lies in controllable production environment, coating curing temperature and humidity are standardized, ensuring consistent finished product quality.

Core Advantages

1. Zero On-Site Processing: Workers do not need to cut, drill or edge-coat. Installation speed is approximately 40% faster than panels requiring on-site cutting. It also eliminates dust, noise and edge waste generated by on-site cutting.

2. Complete Edge Protection: All four edges and openings are moisture-proof sealed, preventing insulation performance degradation caused by exposed core material edges absorbing atmospheric moisture.

3. High Batch Consistency: Factory CNC processing ensures consistent precision for each panel. After installation, panel joints are uniform with good overall appearance.

4. Reduced On-Site Waste: No cutting waste on site, material utilization rate close to 100%.

Technical Specifications

Finished Panel Dimensional Tolerance: Length ±1.5mm, Width ±1.0mm, Thickness ±0.5mm

Pre-Drilled Hole Accuracy: Hole position ±0.5mm

Edge Treatment: Full edge sealing with sealant for moisture-proof protection

Panel Flatness: ≤ 1.0mm / 2m

Factory Protection: Covered with PE film, to be removed before installation

Custom Manufacturing Process

Step 1: Detailed Design: Customer provides building exterior wall drawings. The technical team decomposes the drawings into panel layout diagrams, marking dimensions, color and pre-drilled hole specifications for each panel.

Step 2: Order Confirmation: After customer signs off on the layout diagram, it is entered into the production system to generate processing data for each panel.

Step 3: Production Processing: Standard size panels are processed on automatic assembly lines; special-shaped panels are processed on CNC machines, with each panel produced independently.

Step 4: Quality Inspection: Each panel undergoes three inspection steps before delivery: appearance check, dimensional re-measurement and color comparison.

Step 5: Packaging & Shipping: Finished panels are packed by building floor, with each package labeled with floor and installation position numbers.

Finished Board vs. On-Site Cut Board Comparison

FAQ

Q1: What if the finished panel size is incorrect upon arrival at the site?

A1: Each panel has a unique number. Verify whether the installation position is correct by checking against the layout diagram. If it is indeed our manufacturing error and discovered before installation, the panel can be returned for rework at our expense.

Q2: Can pre-drilled hole positions be modified later?

A2: On-site re-drilling is not recommended because the edge sealing treatment around the holes is completed at the factory. On-site modification would damage the moisture-proof seal. Any adjustments should be proposed during the design phase.
