Faced Insulation Wall Panel

Decorative Finishes Comparison and Application Scenarios

Common decorative finishes for faced insulation wall panels and their characteristics:

Fluorocarbon Paint Finish — Best weather resistance, color retention rate ≥ 90% (3000h aging test), suitable for high-end commercial buildings and coastal high salt spray areas.

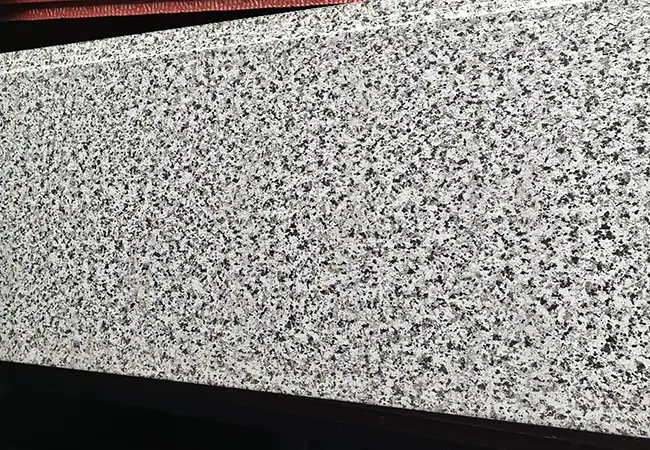

Stone-like Paint Finish — Visual effect close to natural stone, self-weight only 1/6 of stone curtain wall, suitable for projects pursuing stone effect with limited budget.

Real Stone Paint Finish — Rougher texture and stronger three-dimensional effect, suitable for villas, low-rise residential and other close-up viewing scenarios.

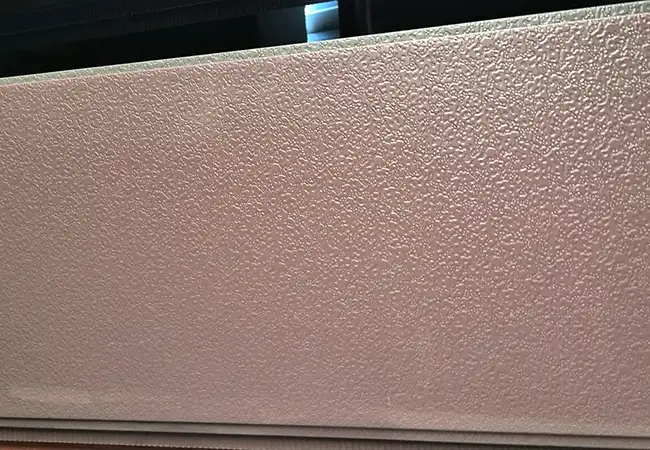

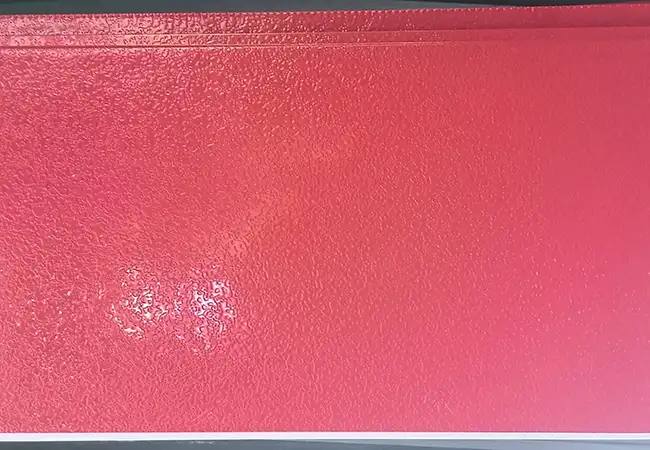

Solid-Color Baking Paint Finish — High color saturation, controllable gloss (matte to high gloss available), suitable for modern minimalist architectural styles.

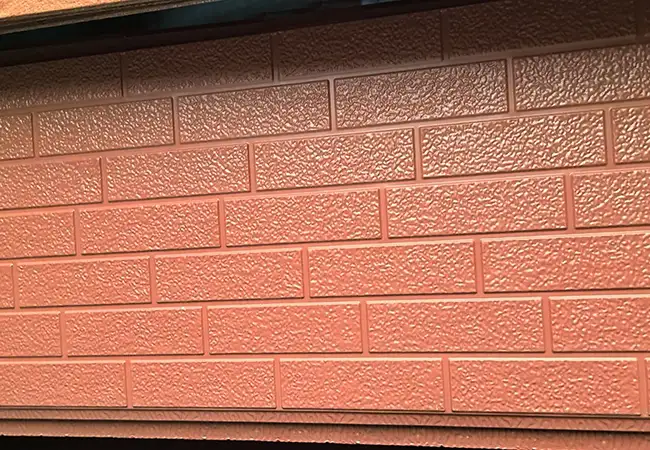

Brick Imitation Finish — Simulated red brick or cultural brick texture, suitable for schools, hospitals and other projects requiring warm facade effects.

It is recommended to provide curtain wall renderings during the design phase. Jiesen can customize corresponding finish samples based on the renderings for review and confirmation.

Main Decorative Finishes & Parameters

Fluorocarbon Paint Finish: Weather resistance over 20 years, color retention rate ≥ 90%, suitable for coastal high salt spray areas

Stone-like Paint Finish: Imitation realism reaches over 80%; distinguishable up close but visually consistent with natural stone at distances over 2m, cost is 1/5 of stone curtain wall

Porcelain Plate Finish: High hardness, scratch resistant, suitable for ground-floor shops, entrance canopies and other areas prone to contact

Coating Thickness: Fluorocarbon paint ≥ 35μm, stone-like paint ≥ 1.5mm, porcelain plate ≥ 0.5mm

Comparison with Dry-Hanging Stone

In dry-hanging stone systems, the insulation layer and stone are constructed separately. After the insulation layer is completed, stone keels must be installed and stone panels hung.

The entire system self-weight is approximately 50 – 70kg/m², with high requirements for building structure. Faced insulation wall panels have a density of approximately 12 – 18kg/m², only 1/4 of the stone system.

In terms of decorative effect, the texture and feel of natural stone are irreplaceable, but faced insulation wall panels can achieve similar visual effects through stone-like series, while reducing project cost by approximately 60% – 70%.

Five Mainstream Decorative Finish Characteristics

FAQ

Q1: Can the finish color be customized?

A1: Yes. Regular colors on the RAL and NCS color charts can be produced. For large color blocks (large solid-color areas), it is recommended to provide samples for color confirmation. Color difference tolerance within ΔE ≤ 1.5 is considered normal deviation.

Q2: What substrate preparation is required before installing faced insulation wall panels on old walls?

A2: The substrate needs to be basically flat, free from hollowing and severe oil stains. Local depressions can be filled with cement mortar, and protruding parts need to be chiseled away. New and old walls are treated the same way with no special requirements.

Q3: How should the wall surface be cleaned after installation?

A3: Normal rain wash can remove most accumulated dust. For stubborn stains, wipe with neutral cleaner mixed with water. Avoid using strong acid or alkaline cleaners to prevent coating damage.

Custom Process Options

Faced insulation wall panels can be customized in:

Panel Thickness: Insulation layer freely selectable within 20 – 100mm

Finish Texture: 15 stone texture options available in the stone-like series

Surface Gloss: Matte / Semi-matte / Glossy

Special Grooving: Decorative groove lines for building facades

Integrated Window Frames & Corner Pieces: Factory prefabricated, on-site installation without cutting
