Exterior Wall Carved Hanging Board

The Exterior Wall Carved Hanging Board is one of the products offered by Jason Building Materials. It utilizes a modern dry-installation interlocking system, resulting in tight, seamless joints. In addition to providing thermal insulation and noise reduction, the panels are easy to install and boast a standard outdoor service life of over 25 years.

Core Advantages

1. Dry-hanging glue-free: The boards are fixed to the keel through metal clips without using structural adhesive, avoiding the hidden danger of adhesive aging and falling off.

2. Air layer heat dissipation: A 10-20mm ventilation cavity is formed between the hanging structure and the wall, which dissipates heat in summer and prevents moisture in winter, preventing water vapor from accumulating inside the wall.

3. Individual replaceable: During later maintenance, damaged boards can be individually removed and replaced without large-scale demolition.

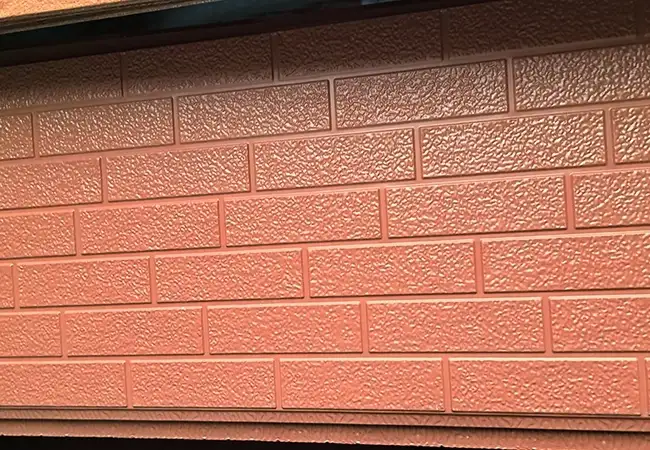

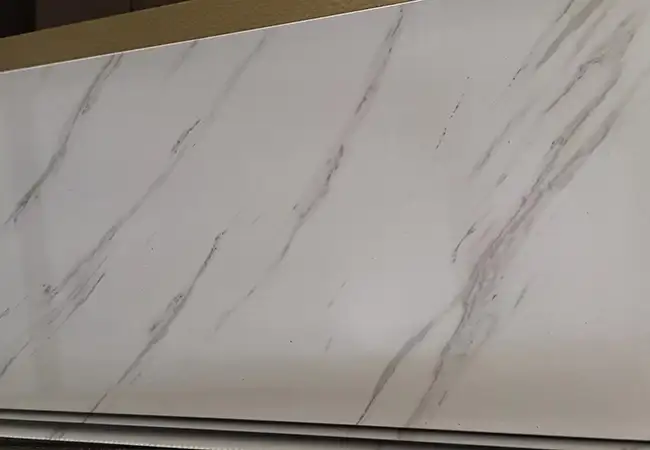

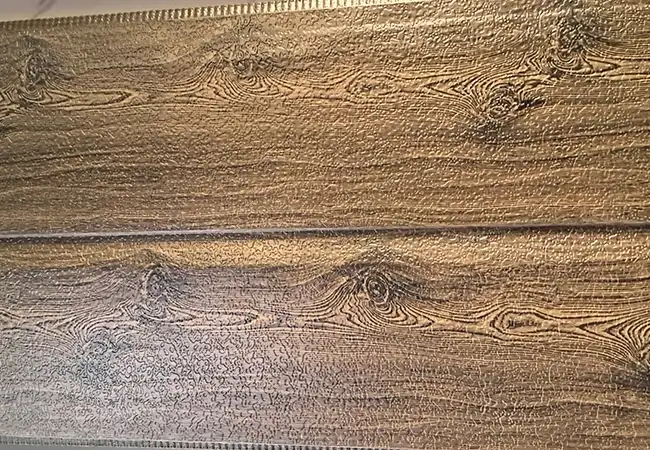

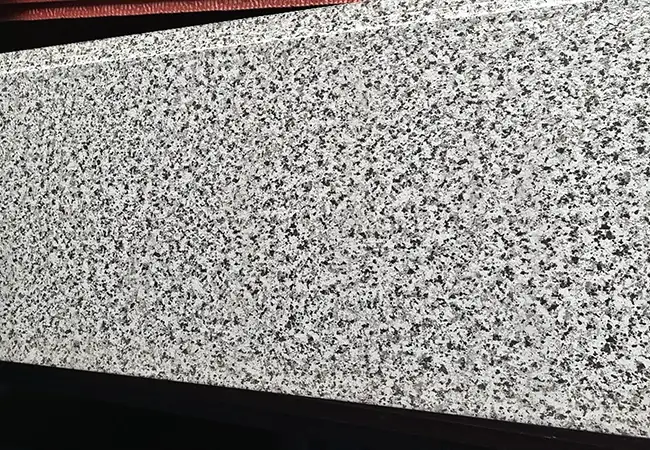

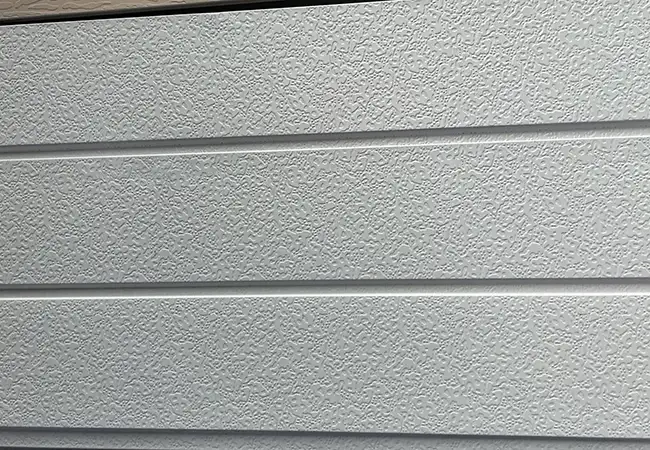

4. Rich styles: Offers more than 30 patterns including brick, mushroom stone, wood grain, and cultural stone.

Product Specifications

Application Scenarios

Old residential community exterior wall renovation: Directly hang new panels on the exterior without damaging the original insulation layer, improving appearance and insulation.

Self-built house exterior and interior wall decoration: Lightweight and high-strength, suitable for the simple wall structures of rural self-built houses.

Street shop facade renovation: Night construction does not affect daytime business, with low construction noise.

Fencing/temporary building exterior walls: Quick installation, removable and reusable.

Tourist area homestay exterior walls: Carved textures match architectural styles for customization, enhancing overall quality.

Construction Precautions

1. Environmental Limitations

Do not proceed with installation if the ambient temperature is below 5°C or above 40°C. Suspend work at heights if wind speeds exceed Force 5. Installation during rainy weather is strictly prohibited to prevent bond failure or moisture ingress into the panels caused by rainwater runoff.

2. Cutting and Handling

Remove metal filings immediately after cutting to prevent rusting.

Carry panels in a vertical position to avoid bending or warping.

3. Protection of Finished Work

Apply a protective film to the surface of the exterior wall carved hanging boards during installation to prevent scratches and contamination. Do not stack heavy objects on or step on the installed panels.

4. Embedded Utilities

Ensure that locations for all elements protruding from the wall—such as railings and air conditioning piping—are designated prior to panel installation; cutting or drilling holes into the panels after installation is prohibited.

After-Sales Service

Warranty coverage includes board surface coating peeling (non-manual damage), steel plate rust-through (non-scratch caused), and tongue-and-groove clip loosening. The warranty period is 12 months.

For coating quality issues confirmed, replacement boards will be dispatched within 15 days. It does not include board extrusion deformation caused by foundation settlement or wall structural deformation.

Each batch of goods comes with a quality inspection certificate; SGS third-party coating test reports are available upon customer request.

Packaging and Shipping Instructions

Exterior wall carved hanging boards are packaged upright on A-frames, with 40-60 boards per frame and pearl cotton padding between boards.

Protective film is applied before leaving the factory and is recommended to be removed after installation is complete.

A 20-foot container can hold approximately 2000-2500m² of boards. Export packaging includes additional waterproof stretch film and edge protectors.

FAQ

Q: Is this type of panel suitable for high-rise buildings?

A: Yes, it is suitable. The exterior wall carved hanging board system undergoes rigorous testing for wind pressure resistance, seismic performance, and fire safety.

During installation, the panels are securely connected to the building's main structure using specialized furring channels and anchors; the design and construction comply with relevant standards, such as the "Code for Building Curtain Walls."

Q: Does renovating an existing building require the removal of the original exterior wall?

A: Complete removal is not necessary. The carved hanging boards can be mounted directly onto the existing wall using a furring channel system, allowing for dry-method installation.

However, a pre-installation inspection of the existing wall substrate is required to ensure it is solid and level, with no significant hollow spots or loose sections.

Q: When is the best time to remove the protective film from the panel surface?

A: The protective film should be removed within 15 to 30 days after installation.

Do not expose panels with the film attached to intense sunlight for more than one month; otherwise, the adhesive may melt and bond to the paint finish, making it extremely difficult to clean.
