Metal Embossed Insulation Board

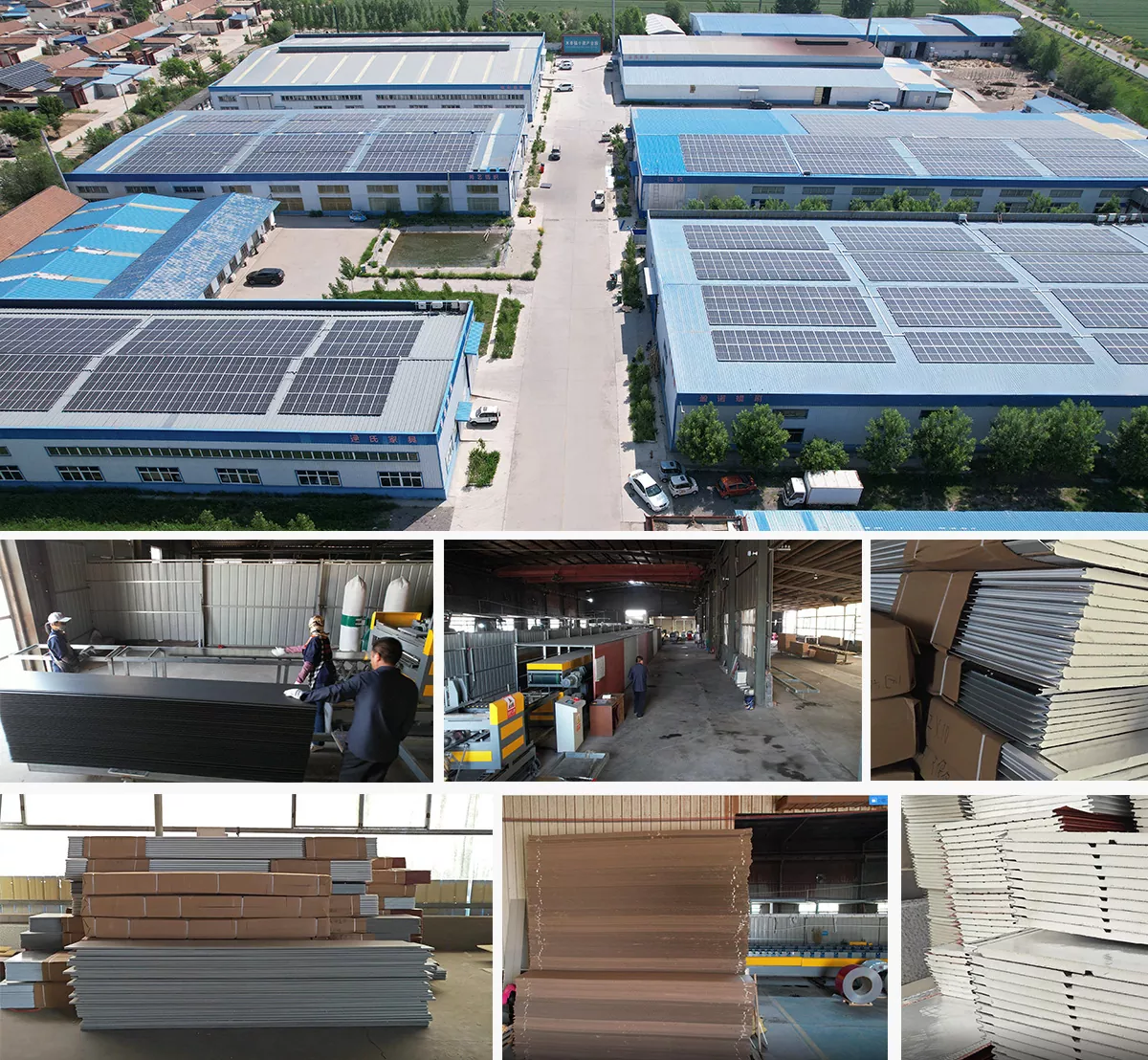

Jason Building Materials is a Chinese manufacturer of metal embossed insulation boards, offering direct-from-factory pricing and one-stop customization services.

The product features a composite insulation core that balances thermal performance with structural stability. It exhibits extremely low thermal expansion and contraction rates, ensuring the panels do not warp, curl, or crack despite seasonal temperature fluctuations.

What is a Metal Embossed Insulation Board?

A metal embossed insulation board is a composite panel featuring a three-dimensional texture created on the metal surface through a mechanical embossing process. Formed by high-pressure pressing of a metal substrate, the panel incorporates a composite insulation core that offers excellent sound insulation, fire resistance, and shock absorption. It requires no manual cleaning or maintenance and maintains a neat, attractive exterior appearance over the long term.

These boards are ideal for large-scale projects and have a wide range of applications, including exterior walls for industrial plants and warehouses, self-built homes in townships, street-facing shops, bus shelters, modular office buildings, and rural public facilities—making them a highly practical choice for large-volume exterior wall insulation and decoration projects.

Core Advantages

1. Uniform rolled texture: Continuous embossing on full-length steel coils with no splicing marks, ensuring neat and uniform texture after large-area installation.

2. Work hardening from embossing increases bending stiffness by 15% – 20% compared with flat plates of the same thickness.

3. Fine on embossed surface guides water flow along grooves during rain washing, preventing large-area water film retention.

4. High surface hardness prevents dents or scratches from ordinary impacts, suitable for factories, walls, and high-traffic passageways prone to collision.

5. Pre-filled core material: insulation core is evenly laid before steel plate lamination, with thickness deviation controlled within ±0.5mm.

Metal Embossed Insulation Board vs. Standard Flat Insulation Boards: Performance Comparison

Key Application Scenarios

1. Light-gauge steel villas and prefabricated buildings: Light-gauge steel homes, self-built rural villas, modular integrated housing, eco-friendly homestays, etc.

2. Municipal urban renewal: Exterior wall insulation and facade renovation for older residential complexes; energy-efficiency retrofitting for schools and hospitals. Metal embossed insulation boards allow for installation without disturbing the original structural framework, ensuring low-noise and dust-free construction.

3. Industrial and commercial buildings: Exterior walls for modern factory facilities, logistics warehouses, decorative walls for commercial districts, etc.

4. Public facilities and amenities: Security booths, mobile restrooms, bus shelters, gas/service stations, etc.

Packaging & Shipping Instructions

Due to the texture on the surface, corrugated paper or foam sheets must be placed between boards during packaging to prevent patterns from nesting and causing difficulty in removal.

Standard lengths (below 3.8m) can be packed flat; extra-long boards (over 4m) are recommended to be packed with vertical A-frame supports.

For single orders exceeding 500m², we can arrange direct truck delivery to reduce handling damage during transit.

After-Sales Service

The warranty conditions for embossed boards are the same as other carved boards: free replacement for surface defects caused by manufacturing quality issues within 12 months.

Embossing pattern clarity is visually inspected before shipment, with a sampling rate of no less than 10% per batch.

If blurred patterns, ghosting, or insufficient depth are found upon acceptance, the recipient shall raise objections and provide photographic evidence within 3 working days.

FAQ

Q: Are metal embossed insulation boards waterproof and moisture-resistant?

A: Yes. These boards feature a stable chemical and physical structure; they do not decompose or develop mold and have low water absorption, effectively preventing wall cracking or mold growth caused by freeze-thaw cycles.

Q: What preparations are required before installation?

A: 1. Substrate preparation: The wall surface must be flat, dry, and solid, with surface flatness deviations kept within 2mm over a 2-meter span.

2. Material inspection: Verify the panel model, color, and pattern, ensuring there is no color variation within the same batch.

3. Panel dryness: Ensure panels are dry before installation. If panels are not sufficiently dry, they may shrink after installation, leading to cracking at joints between panels or at connections with wall studs.

Q: What embossed textures and colors are available for customization?

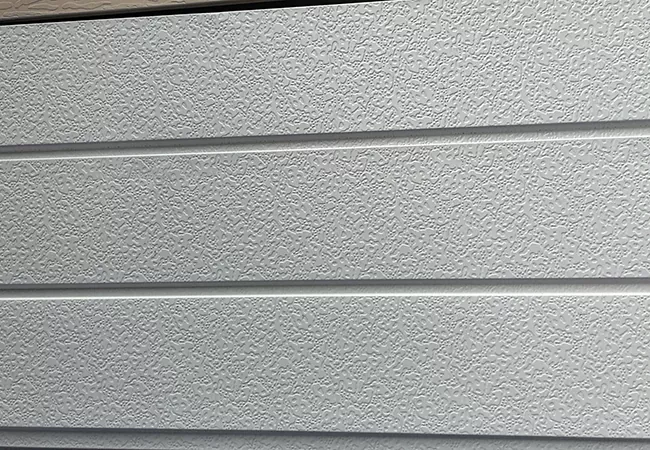

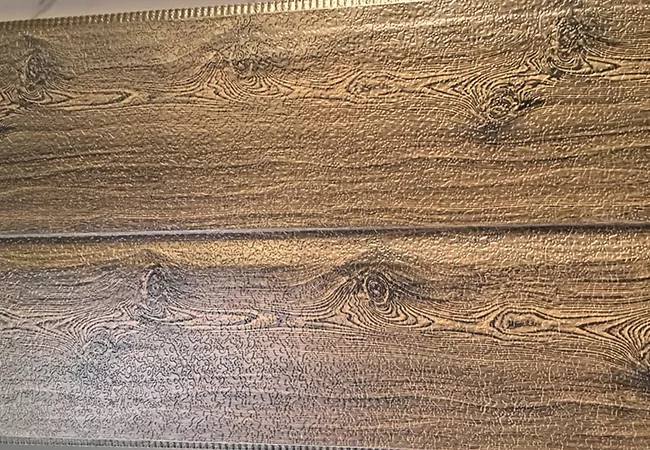

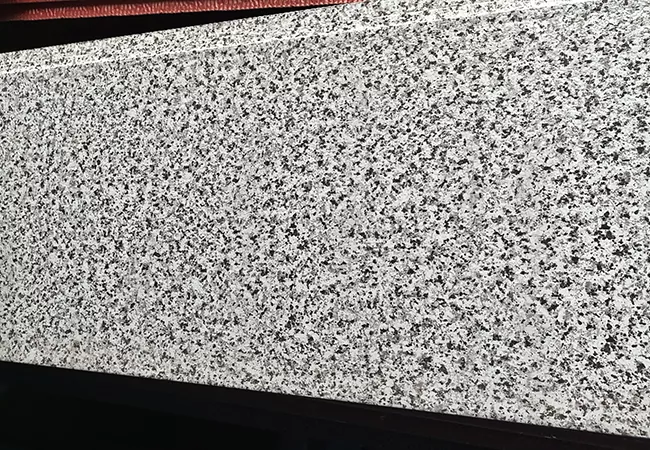

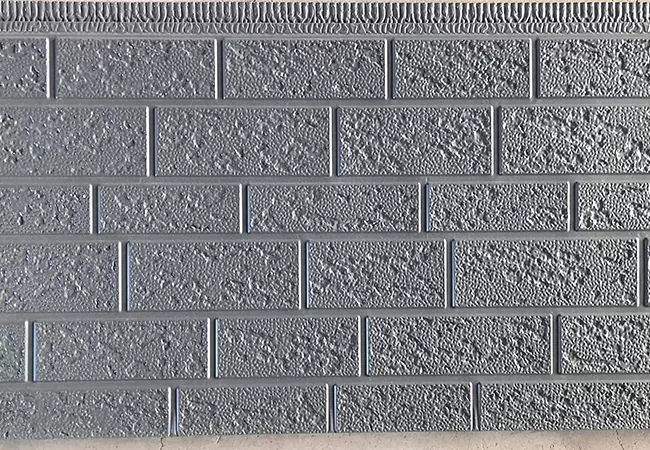

A: We offer dozens of 3D embossed textures, including brick, cultured stone, wood grain, marble, and stucco finishes. Colors can be customized based on standard RAL codes or your architectural CAD drawings.
