Color Steel Relief Board

Core Advantages

1. Rust-proof color steel substrate: Hot-dip aluzinc steel plate as substrate, double-sided coating weight ≥ 150g/m², with self-healing anti-corrosion function at cut edges.

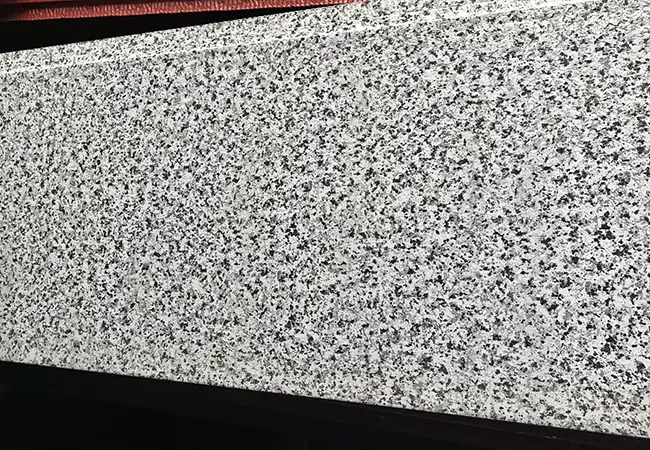

2. Rich variety of relief texture molds: Covering four major series — imitation cultural stone, imitation mushroom stone, imitation wood grain, and imitation brick pattern, each with 3 – 5 sub-patterns.

3. Simple construction tools: Only angle grinder (cutting), electric drill (drilling), screwdriver, and level are required. Ordinary masonry crews can work independently after half a day of training.

4. Flexible color matching: Customizable in solid colors or two-tone matching (texture part in dark color, base in light color to enhance three-dimensional effect).

5. Renovation without removing original walls: During old building renovation, directly level with wooden strips and mount panels without removing original tiles or paint layers.

Technical Parameters

Substrate Material: Hot-dip aluzinc steel plate (AZ150 grade)

Steel Plate Thickness: 0.35mm / 0.4mm / 0.5mm

Relief Depth: 1.5 – 3.0mm (varies by pattern)

Panel Dimensions: Please refer to series specification sheets

Core Thickness: 16 – 50mm (customized according to insulation requirements)

Reflective Insulation: Solar Reflectance Index (SRI) ≥ 70 (light color series)

Configuration Recommendations

1. Coating Process

Standard Configuration: PE coating; offers a wide range of colors and meets general weather resistance requirements.

High Weather-Resistance Configuration: HDP or PVDF coating; offers superior UV and chalking resistance, maintaining color stability for 20–30 years.

2. Steel Sheet Thickness

The Color Steel Relief Board is available in 0.35mm, 0.4mm, and 0.5mm; a minimum thickness of 0.3mm is recommended to prevent surface dents or deformation caused by excessive thinness.

3. Fire Rating

Class A (Non-combustible): Rock wool core material is mandatory for high-rise residential buildings, public facilities, factories, and warehouses with strict fire safety requirements.

Class B1 (Flame-retardant): Flame-retardant polyurethane (PU) core material is suitable for low-to-mid-rise buildings, self-built homes, and guard booths; it offers superior thermal insulation and lighter weight.

4. Thermal Insulation Performance

Polyurethane (PU): Thermal conductivity ≤0.024 W/(m·K); suitable for severely cold or cold regions with high energy-efficiency requirements.

Rock Wool: Higher thermal conductivity but offers excellent fire resistance.

5. Core Material Thickness

Determine based on local building energy-efficiency standards. Common thicknesses include 16mm, 20mm, 25mm, 30mm, and 50mm. 16mm is the standard specification, while 30mm or greater is recommended for cold northern regions.

6. Texture Selection

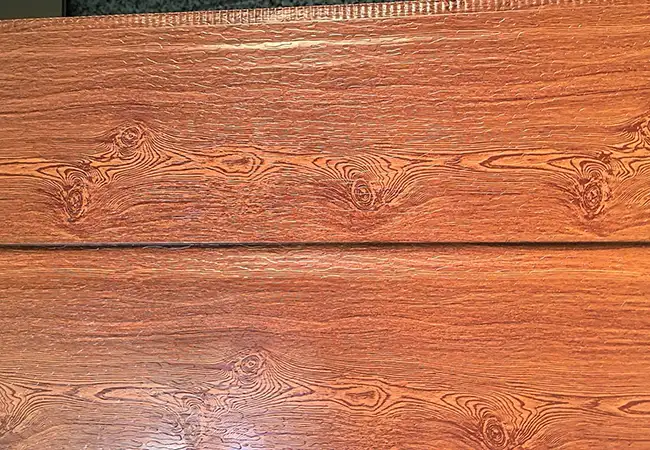

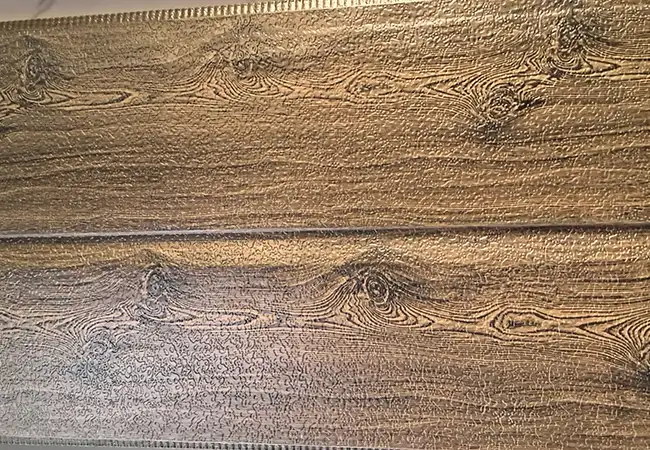

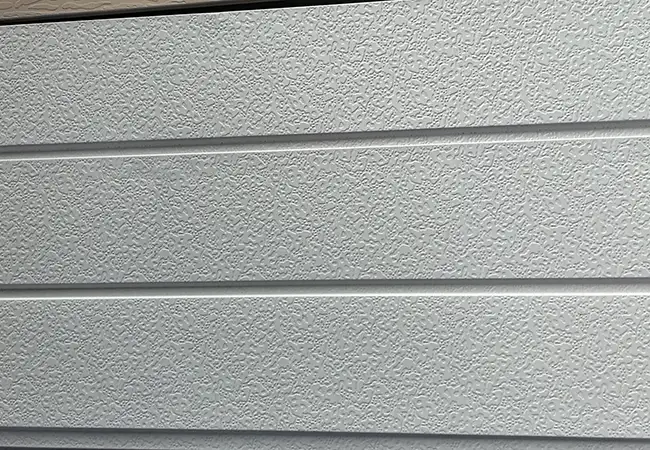

Over a hundred options available, including brick, stone, wood grain, stucco, and water-ripple patterns; customizable to match architectural styles.

Recommendation: Textures with strong visual depth (e.g., brick or cultured stone patterns) better conceal installation seams and minor surface irregularities, resulting in a superior visual finish.

7. Color Selection

Custom colors available.

Recommendation: Prioritize low-to-medium saturation colors (e.g., beige, light gray, brick red); these colors are more dirt-resistant and entail lower long-term maintenance costs.

FAQ

Q1: Will dust accumulate in the relief textures?

A1: The relief pattern depth is approximately 1.5 – 3mm. Normal rain wash can carry away surface dust. When installed horizontally, grooves may accumulate dust, therefore relief boards are always installed vertically on walls, using rainwater to create drainage channels.

Q2: Can curved or rounded corners be made?

A2: Curves with a radius greater than 3m can be achieved through cold bending. Small-radius arcs require custom curved molds. Corner finishing uses factory-pre-fabricated matching inner/outer corner pieces.

Q3: Is the installation method the same as ordinary color steel tiles?

A3: No. Color steel tiles are lap-jointed with exposed seams. Relief boards use tongue-and-groove interlocking installation, with seams hidden within the pattern for a more unified overall appearance.

Custom Services

Customization options for color steel relief boards include:

Size Customization: Non-standard width requires mold fee; waived for batch orders exceeding 1000m².

Color Customization: Any RAL color code adjustable, minimum order quantity 500m².

Two-Tone Customization: Different colors for relief convex and concave surfaces, minimum order quantity 800m².

Pattern Depth Customization: Standard depth 2mm, can be deepened to 3mm or reduced to 1mm (mold change required).
