Thermal Insulation Carved Board

Jason Building Materials is a Chinese manufacturer of carved thermal insulation panels. Our products are lightweight, energy-efficient, waterproof, and highly weather-resistant, making them an ideal choice for exterior wall projects on low-rise buildings. They can be installed on-site via dry-hanging or direct assembly, offering decorative finishes that suit a wide range of architectural styles.

What is a Thermal Insulation Carved Board?

The Thermal Insulation Carved Board is an innovative, green, and energy-efficient building material that integrates high-efficiency thermal insulation, exterior wall decoration, and fire/water resistance. It consists of three core structural layers:

1. Decorative Surface Layer

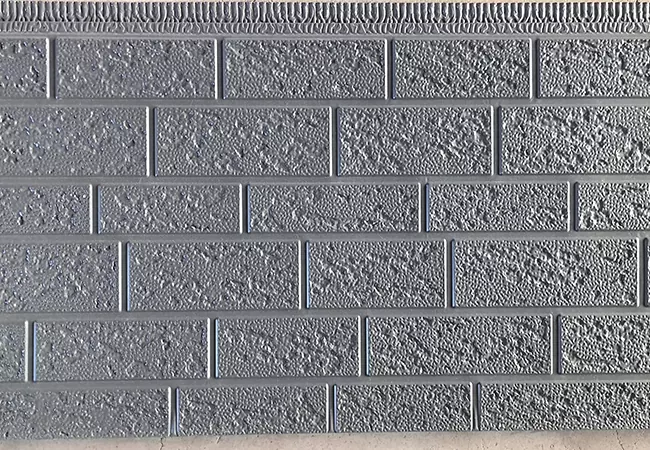

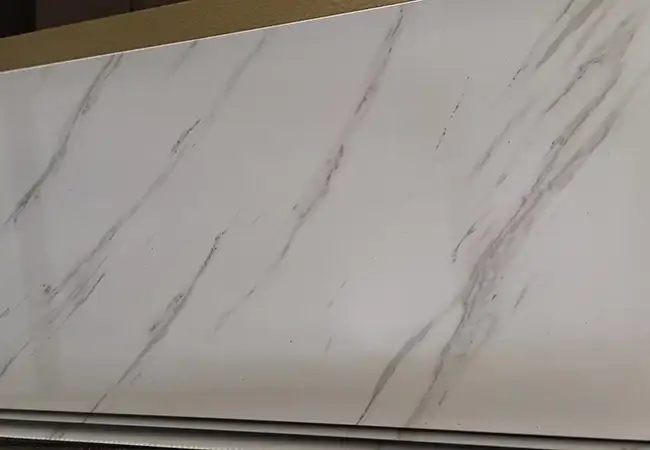

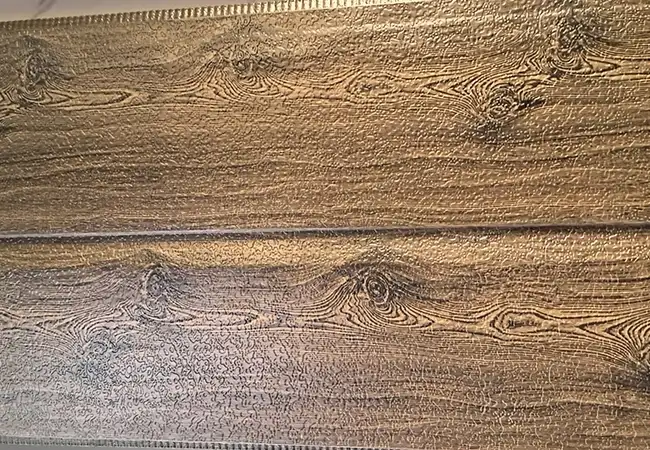

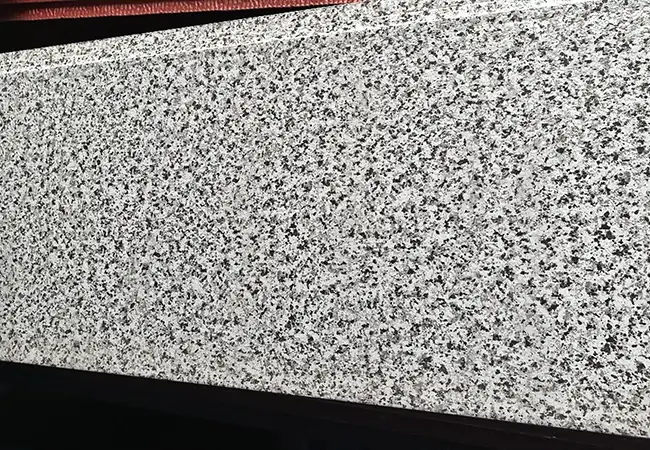

Made from high-quality Al-Zn coated steel or aluminum sheets treated with a special coating, this layer utilizes an intelligent embossing process to create various artistic patterns—such as brick, stone, and wood grain textures. It is finished with a highly weather-resistant fluorocarbon coating, ensuring color stability for 20 years.

2. Intermediate Insulation Layer

This is the core layer, composed of flame-retardant, high-density rigid polyurethane (PU) or rock wool, providing thermal and acoustic insulation performance.

3. Bottom Reinforcement Layer

A bottom aluminum foil protective layer stabilizes the structure and offers water and moisture resistance, effectively reflecting heat and preventing moisture penetration.

Core Advantages

1. Decorative layer and insulation layer integrated: The steel plate surface is treated with color coating or fluorocarbon coating, pressed into stone/brick/wood grain three-dimensional patterns, combining decoration and physical protection without the need for additional paint or tiles.

2. Polyurethane insulation core thermal conductivity is about 0.022W/m·K, with a closed-cell rate of over 95%, ensuring insulation performance does not degrade in humid environments.

3. The boards are installed through tongue-and-groove jointing. After the grooves and tongues interlock, the seams are waterproof without the need for sealant.

4. Self-weight is about 5-8kg/m², about 1/4 of a tile-cladding system, exerting extremely low load on the base wall.

5. Flame retardant performance: Polyurethane core can reach B1 grade flame retardant standard; rock wool core can reach A grade non-combustible.

Technical Specifications

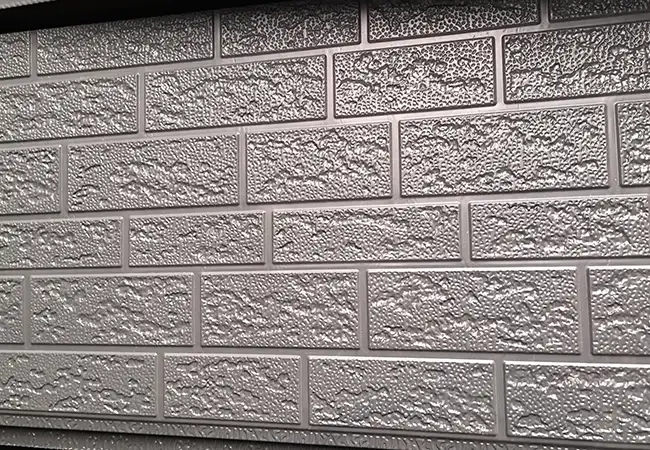

Standard Sizes: 3800mm×380mm (antique brick pattern), 2400mm×600mm (large-area assembly)

Board Thickness: 16mm / 20mm / 25mm / 30mm (polyurethane core)

Steel Plate Thickness: 0.35-0.5mm galvalume steel plate

Thermal Conductivity: ≤0.024W/m·K

Applicable Temperature: -50°C to +80°C

Wind Pressure Resistance: ≥3.0kPa (designed according to GB 50009)

Thermal Insulation Carved Board vs. Exterior Wall Coating Comprehensive Comparison

Case Study

In 2023, a rural self-built house project in Hebei Province. The homeowner wanted the exterior wall to have both insulation function and a stone-like decorative effect, with a budget controlled within 300 RMB/m².

The construction team ruled out dry-hanging stone (over budget) and real stone paint (needs repainting after 5 years), and finally selected 50mm polyurethane core insulation carved board.

Installation took 8 days to complete 280m² of exterior wall, with a total cost of 260 RMB/m².

After completion, two consecutive winters of measurement showed: before insulation, the indoor temperature was about 14°C; after installation, it rose to 20-22°C, saving about 40% on heating costs.

FAQ

Q: Can thermal insulation carved boards be used for high-rise buildings?

A: Yes. The board is lightweight and, combined with a keel dry-hanging system, can be used for high-rise building exterior walls. However, keel specifications and anchor spacing must be determined based on wind load calculations.

Q: Will the board surface pattern fade?

A: Fluorocarbon coating can maintain color for 20 years without fading (accelerated aging test 3000 h color retention rate ≥90%); polyester coating lasts about 8-10 years.

Q: Can the board be cut?

A: On-site cutting can be done using an angle grinder or electric shears. The cut edges must be coated with anti-rust paint to prevent edge corrosion.
